Australian 240v mains curly cords as used to provide power outlets in the back of Drawers in commercial facilities such as Hotels, Commercial Kitchens etc.
Supplied without connectors.
*Must be fitted by a licensed electrician.
ORDINARY DUTY VERSION.
Typically some stock available. Bulk orders coiled on demand.
Most Popular 2.5mm² Version:

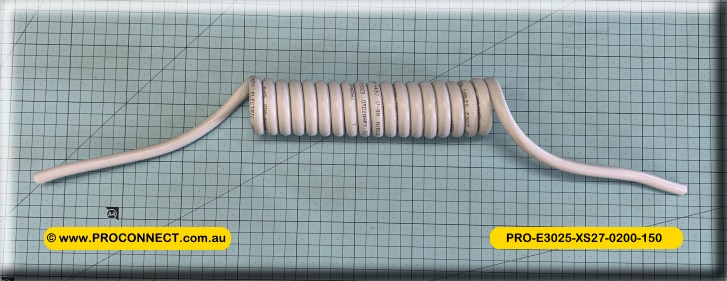

| PRO-E3025-XS27-0200-150 | 3 core 2.5mm² PVC Curly Cord. Approx 50mm Ø 200mm coil, with 150mm tails. Extends to 1.1m max including tails. |
$72.05
+GST |
2.5mm² VERSION |
Smaller 1.5mm² Version:
| PRO-F3015-XS19-0200-150 | 3 core 1.5mm² PVC Curly Cord. Approx 38mm Ø 200mm coil, with 150mm tails. Extends to 1.1m max including tails. |
$62.25
+GST |
1.5mm² VERSION |
- We typically have Black and/or White in stock.
- The colour is normally not important as they are hidden behind the drawer, and usually not seen.
- If you have a colour preference please include it in the notes section on the ordering screen.
- If preferred colour is not requested, we will send colour at our discretion.
- Because the cable in these cords is rather heavy/stiff (being fairly large 2.5mm²), people tend to require longer cords than you might initially think.
- Note the E or F in the part number is just for us to signify what brand of flex we are using.
***If you are really tight for space, we also do these: https://www.curlycords.com.au/curlycords/power-and-control-curly-cords-pvc-mains-flex/
Which are all coiled to tighter diameters. E.G. 2.5mm² style with tighter 40mm Ø coils are also available.
There is more than one way to use these cords, but I believe what the installers often do is put an outlet in the wall behind the drawer, and fit a plug on one end of the curly cord, and run the other end into another outlet mounted in the back of the drawer. On this end the cord much be properly secured in place of course.
SPECIAL VERSION:
Customers mainly ask for these cords in 2.5mm² Ordinary Duty as listed above.
Some customers have requested Heavy Duty Curly Cords:
(These special versions are coiled on demand. Typically 1-2 week lead time.)
| PRO-F3025HD-XS27-0200-150 | 3 core 2.5mm² HEAVY DUTY PVC Curly Cord. Approx 55mm Ø 200mm coil, with 150mm tails. Extends to 1.1m max including tails. |
$89.80
+GST |
SPECIAL HD VERSION |
You will need to confirm which type is suitable for your situation.
Extra Long, or Extra Short cords can also be supplied.
Please email any special requirements.
