These cords are generally wound on demand. Typically 1-2 week lead time.

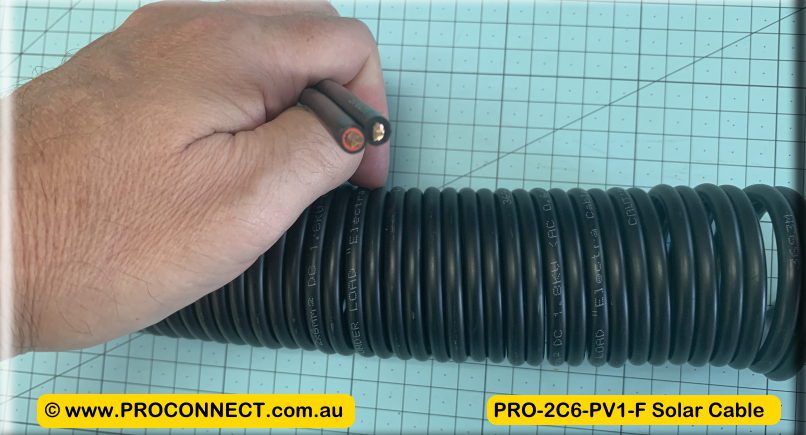

Twin 6mm² Solar Cable.
Instead of the smaller 4mm² these cords use the larger 6mm² conductor size, to lower resistance, and increase current carrying capacity.
Most MC4 solar connectors can accommodate this size wire.

Black UV Stable outer sheathed Cable. 6×13.5 mm Nominal O.D. Approx 50mm Coil Diameter.
These cords use a 2 core Red and Black, or Red and Blue – depending on current cable stock.
And can extend up to 4 times the compressed length. (Plus the straight tails)

PRO-2C6PV1-F-0150-150
150mm coil, with 150mm tails. extends to approx 900mm total including tails.
$77.25/each +GST
Click here to add to order

PRO-2C6PV1-F-0300-150
300mm coil, with 150mm tails. extends to approx 1.5m total including tails.
$100.88/each +GST
Click here to add to order

PRO-2C6PV1-F-0500-150
500mm coil, with 150mm tails. extends to approx 2.3m total including tails.
$132.75/each +GST
Click here to add to order



---



EXTRA LARGE Twin 10mm² Solar Cable.
Black UV Stable outer sheathed Cable. 7.5×16 mm Nominal O.D. Approx 60mm Coil Diameter.

PRO-2C10PV1-F-0150-150
150mm coil, with 150mm tails. extends to approx 900mm total including tails.
$101.25/each +GST
Click here to add to order

PRO-2C10PV1-F-0300-150
300mm coil, with 150mm tails. extends to approx 1.5m total including tails.
$146.63/each +GST
Click here to add to order

PRO-2C10PV1-F-0500-150
500mm coil, with 150mm tails. extends to approx 2.3m total including tails.
$207.00/each +GST
Click here to add to order

Other lengths also possible. Please email your inquiry.
